Gigabyte B860M DS3H WIFI6E Motherboard, LGA1851 Socket, Intel B860 Chipset, DDR5 9066MHz OC, Micro-ATX Form Factor, PCIe 5.0, M.2 Gen5, Wi-Fi 6E, Bluetooth 5.3

Gigabyte B860M DS3H WIFI6E Motherboard, LGA1851 Socket, Intel B860 Chipset, DDR5 9066MHz OC, Micro-ATX Form Factor, PCIe 5.0, M.2 Gen5, Wi-Fi 6E, Bluetooth 5.3
Gigabyte B860M DS3H WIFI6E Motherboard, LGA1851 Socket, Intel B860 Chipset, DDR5 9066MHz OC, Micro-ATX Form Factor, PCIe 5.0, M.2 Gen5, Wi-Fi 6E, Bluetooth 5.3
Gigabyte B860M DS3H WIFI6E Motherboard, LGA1851 Socket, Intel B860 Chipset, DDR5 9066MHz OC, Micro-ATX Form Factor, PCIe 5.0, M.2 Gen5, Wi-Fi 6E, Bluetooth 5.3
Gigabyte B860M DS3H WIFI6E Motherboard, LGA1851 Socket, Intel B860 Chipset, DDR5 9066MHz OC, Micro-ATX Form Factor, PCIe 5.0, M.2 Gen5, Wi-Fi 6E, Bluetooth 5.3
Gigabyte B860M DS3H WIFI6E Motherboard, LGA1851 Socket, Intel B860 Chipset, DDR5 9066MHz OC, Micro-ATX Form Factor, PCIe 5.0, M.2 Gen5, Wi-Fi 6E, Bluetooth 5.3
Gigabyte B860M DS3H WIFI6E Motherboard, LGA1851 Socket, Intel B860 Chipset, DDR5 9066MHz OC, Micro-ATX Form Factor, PCIe 5.0, M.2 Gen5, Wi-Fi 6E, Bluetooth 5.3
Gigabyte B860M DS3H WIFI6E Motherboard, LGA1851 Socket, Intel B860 Chipset, DDR5 9066MHz OC, Micro-ATX Form Factor, PCIe 5.0, M.2 Gen5, Wi-Fi 6E, Bluetooth 5.3
Gigabyte B860M DS3H WIFI6E Motherboard, LGA1851 Socket, Intel B860 Chipset, DDR5 9066MHz OC, Micro-ATX Form Factor, PCIe 5.0, M.2 Gen5, Wi-Fi 6E, Bluetooth 5.3

Gigabyte B860M DS3H WIFI6E Motherboard, LGA1851 Socket, Intel B860 Chipset, DDR5 9066MHz OC, Micro-ATX Form Factor, PCIe 5.0, M.2 Gen5, Wi-Fi 6E, Bluetooth 5.3

Form Factor:
Delivery to or. Chișinău
Home Delivery
date.luni, 28.09.2026 (1 working days)
42 MDL
Another person is viewing this product
Gigabyte
View all products of this brand
Gigabyte
3769.00 MDL
Sold by Doorify5.0 and delivered by IVO
In Stock

Description

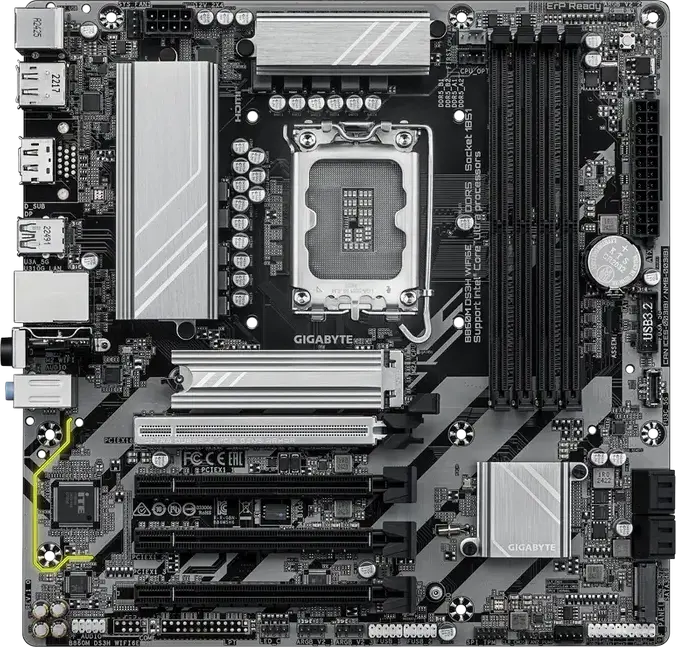

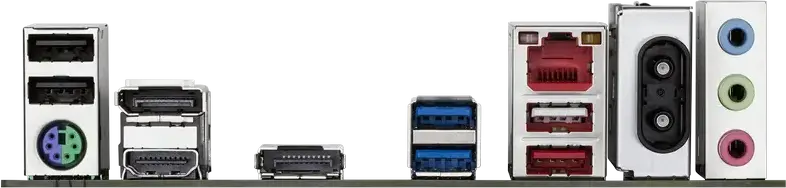

The Gigabyte B860M DS3H WIFI6E is a Micro-ATX motherboard designed for Intel Core Ultra Series 1 and Series 2 processors using the LGA1851 socket. Its compact Micro-ATX form factor provides a versatile foundation for modern builds, supporting up to 256GB of DDR5 memory across four slots with speeds reaching 9066 MHz through overclocking. For high-speed storage, you can utilize a PCIe Gen5 x4 M.2 slot alongside a Gen4 slot and four SATA ports, allowing for a mix of ultra-fast NVMe drives and larger traditional hard disks. Connectivity is a strong point of this board, featuring Intel Wi-Fi 6E and Bluetooth 5.3 for stable wireless communication, complemented by a 2.5 Gigabit Ethernet port for wired networking. The rear panel offers a variety of display options with HDMI 2.1 and DisplayPort 2.1, as well as several USB 3.2 and 2.0 ports for your peripherals. To personalize your setup, the board includes four RGB LED headers and three addressable LED strip connectors, making it a practical choice for users building a compact yet powerful workstation or gaming PC.

Features

Audio and Internal Headers

Audio Channels
7.1
Audio Chipset
Realtek ALC897
Power Connectors
1 x 24-pin ATX, 1 x 8-pin EPS
RGB Headers
3-pin ARGB (5V), 4-pin RGB (12V)

Expansion and Storage

SATA III Connectors
4
M.2 Slots
2
PCI Express Slots
PCIe 5.0 x16, PCIe 3.0 x1, PCIe 4.0 x16
RAID Support
RAID 0, RAID 1, RAID 10, RAID 5

Memory Support

Memory Type
DDR5
Memory Slots
4
Memory Architecture
Dual Channel
Maximum Memory Capacity
256 GB

Connectivity and Ports

Network (LAN)
2.5 Gbps
Back Panel USB Ports
USB 3.2 Gen 1, USB 2.0, USB 3.2 Gen 2
Video Outputs
HDMI, DisplayPort
Wireless Connectivity
Wi-Fi 6E, Bluetooth 5.3

General Specifications

Socket
LGA1851
Chipset
Intel B860
Form Factor
Micro-ATX
