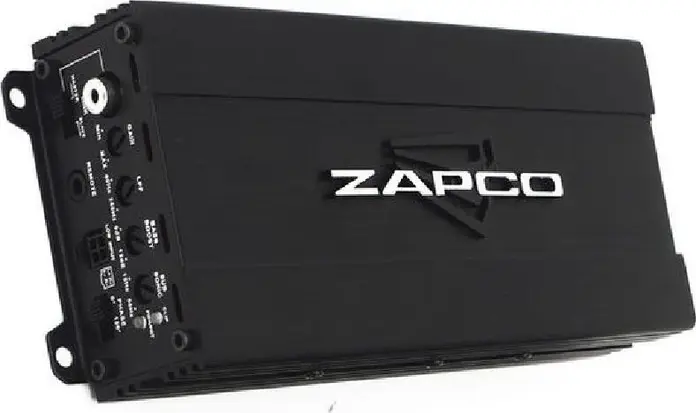

Zapco ST-501D SQ MINI Mono Class D Subwoofer Amplifier, 530W at 1 Ohm, 180W at 4 Ohm, LPF, Bass Boost, Subsonic Filter, Micro Chassis

Zapco ST-501D SQ MINI Mono Class D Subwoofer Amplifier, 530W at 1 Ohm, 180W at 4 Ohm, LPF, Bass Boost, Subsonic Filter, Micro Chassis
Zapco ST-501D SQ MINI Mono Class D Subwoofer Amplifier, 530W at 1 Ohm, 180W at 4 Ohm, LPF, Bass Boost, Subsonic Filter, Micro Chassis

Zapco ST-501D SQ MINI Mono Class D Subwoofer Amplifier, 530W at 1 Ohm, 180W at 4 Ohm, LPF, Bass Boost, Subsonic Filter, Micro Chassis

Delivery to or. Chișinău
Pickup point delivery
Wednesday, 21.10.2026 (1 working days)
30 MDL
New
Another person is viewing this product
ZA
View all products of this brand
ZAPCO
6000.00 MDL
Sold by SRL Autohifi and delivered by IVO
In Stock

Description

The Zapco ST-501D SQ MINI is a compact Class D mono amplifier designed specifically to power subwoofers. Despite its miniature case, it delivers significant power, providing 180 W at 4Ω, 320 W at 2Ω, and up to 530 W when running at 1Ω. This performance is paired with a signal-to-noise ratio exceeding 100dB and low total harmonic distortion of less than 0.1%, ensuring a clean signal for your low-end frequencies. Its micro chassis measures 86 mm in width, 42 mm in height, and 206 mm in total length, making it easy to tuck away in tight spaces where a full-sized amplifier wouldn't fit. You can fine-tune the sound using the adjustable electronic low-pass filter, bass boost, and subsonic filter, while the linear RCA input and adjustable gain control allow for precise integration with your head unit. For those needing even more power, the unit is linkable, allowing you to strap two amplifiers together. A remote control regulator is also included, giving you the ability to adjust the bass levels from your seat.

Features

Connectivity and Build

Input Type
RCA (Low Level)
Remote Bass Control
Included
Dimensions
206 x 86 x 42 mm

General Specifications

Number of Channels
1 Channel (Mono)
Amplifier Class
Class D

Audio Performance

Signal-to-Noise Ratio (SNR)
100 dB
Total Harmonic Distortion (THD)
< 0.1%
Frequency Response
15Hz to 250Hz

Filters and Controls

Subsonic Filter
Yes

Power Output

RMS Power at 4 Ohms
1 x 180 W
RMS Power at 2 Ohms
1 x 320 W
