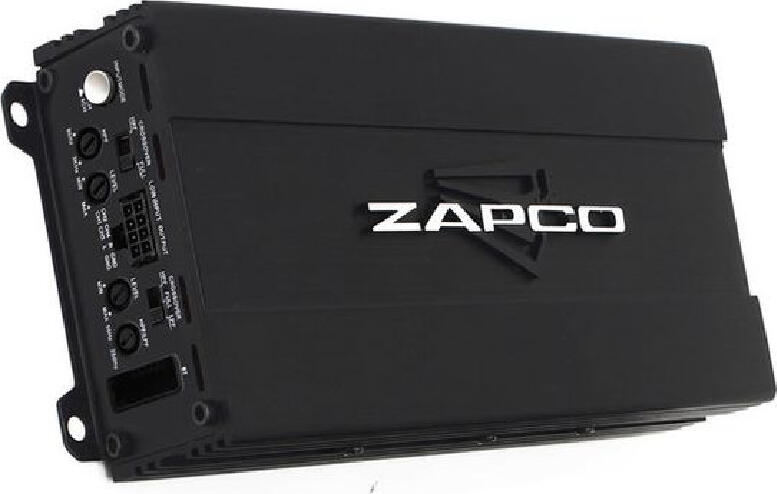

ZAPCO ST-104D SQ MINI 4-Channel Wideband Class D Mini Amplifier, 4 x 120W @ 2 Ohm, 2 x 240W Bridged, Micro Chassis, High-Level Input

ZAPCO ST-104D SQ MINI 4-Channel Wideband Class D Mini Amplifier, 4 x 120W @ 2 Ohm, 2 x 240W Bridged, Micro Chassis, High-Level Input
ZAPCO ST-104D SQ MINI 4-Channel Wideband Class D Mini Amplifier, 4 x 120W @ 2 Ohm, 2 x 240W Bridged, Micro Chassis, High-Level Input
ZAPCO ST-104D SQ MINI 4-Channel Wideband Class D Mini Amplifier, 4 x 120W @ 2 Ohm, 2 x 240W Bridged, Micro Chassis, High-Level Input
ZAPCO ST-104D SQ MINI 4-Channel Wideband Class D Mini Amplifier, 4 x 120W @ 2 Ohm, 2 x 240W Bridged, Micro Chassis, High-Level Input

ZAPCO ST-104D SQ MINI 4-Channel Wideband Class D Mini Amplifier, 4 x 120W @ 2 Ohm, 2 x 240W Bridged, Micro Chassis, High-Level Input

Delivery to or. Chișinău
Pickup point delivery
Wednesday, 21.10.2026 (1 working days)
30 MDL
New
Another person is viewing this product
ZA
View all products of this brand
ZAPCO
8000.00 MDL
Sold by SRL Autohifi and delivered by IVO
In Stock

Description

The ZAPCO ST-104D SQ MINI is a 4-channel wideband Class D amplifier designed for those who need significant power without sacrificing space in their vehicle. This compact unit delivers 95 W per channel at 4Ω, which can be increased to 120 W at 2Ω, or bridged to provide 2 x 240 W RMS for more demanding speaker setups. Its high signal-to-noise ratio of over 90 dB and a frequency response ranging from 15 Hz to 30 kHz ensure a clean, accurate sound reproduction with very low distortion. To make installation flexible, the amplifier features both linear RCA and high-level inputs, including an automatic turn-on function triggered by the high-level signal. You can fine-tune the audio using the adjustable input sensitivity and electronic crossover, while an optional HD Bluetooth module allows for wireless connectivity. The entire system is housed in a micro chassis measuring 95 x 37 x 236 mm, making it easy to tuck away in tight spots under a seat or behind a dashboard while still powering a full set of car speakers.

Features

Connectivity and Build

Input Type
RCA (Low Level), Speaker Level (High Level)
Cooling Type
Passive (Heatsink)
Remote Bass Control
Not Supported
Dimensions
236 x 95 x 37 mm

General Specifications

Amplifier Class
Class D
Number of Channels
4 Channels

Filters and Controls

Subsonic Filter
No

Audio Performance

Signal-to-Noise Ratio (SNR)
> 90 dB
Total Harmonic Distortion (THD)
< 0.1%
Frequency Response
15Hz to 30KHz ±1dB
Input Sensitivity
.25 V to 5 V

Power Output

Bridged RMS Power
2 x 240 W RMS
RMS Power at 4 Ohms
4 x 95 W
RMS Power at 2 Ohms
4 x 120 W
