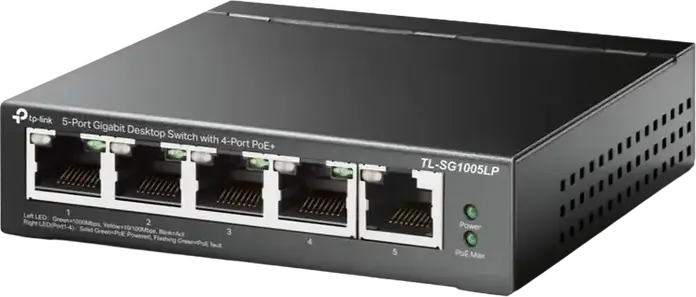

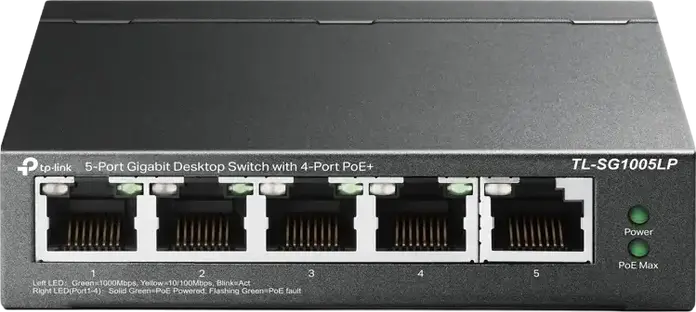

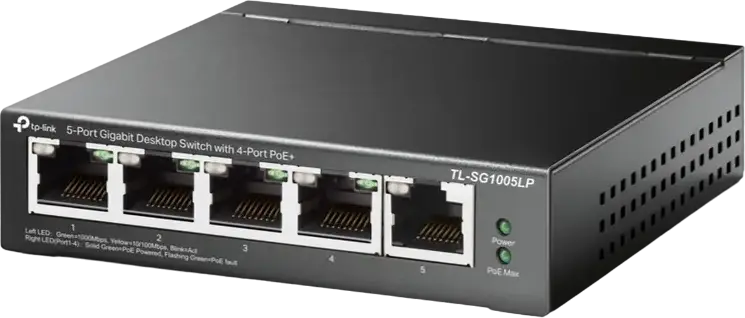

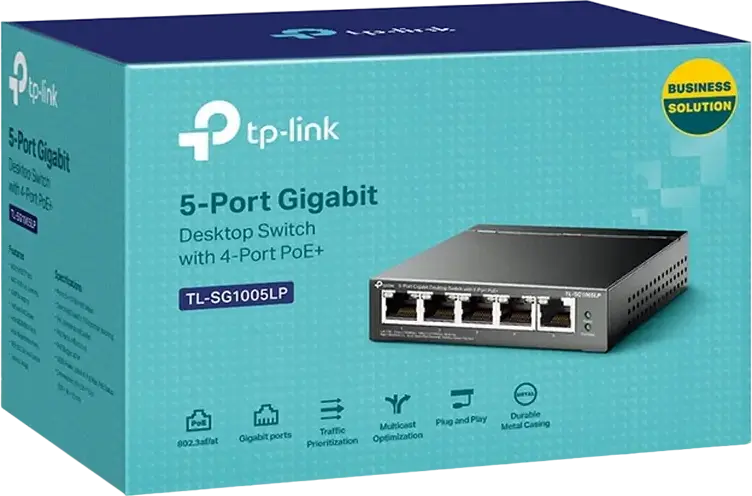

TP-Link TL-SG1005LP Unmanaged PoE+ Switch, 5 Port Gigabit 10/100/1000 Mbps, 4 PoE+ Ports 802.3af/at, 40W Budget, Extend Mode 250m, Metal Casing, Black

TP-Link TL-SG1005LP Unmanaged PoE+ Switch, 5 Port Gigabit 10/100/1000 Mbps, 4 PoE+ Ports 802.3af/at, 40W Budget, Extend Mode 250m, Metal Casing, Black
TP-Link TL-SG1005LP Unmanaged PoE+ Switch, 5 Port Gigabit 10/100/1000 Mbps, 4 PoE+ Ports 802.3af/at, 40W Budget, Extend Mode 250m, Metal Casing, Black
TP-Link TL-SG1005LP Unmanaged PoE+ Switch, 5 Port Gigabit 10/100/1000 Mbps, 4 PoE+ Ports 802.3af/at, 40W Budget, Extend Mode 250m, Metal Casing, Black
TP-Link TL-SG1005LP Unmanaged PoE+ Switch, 5 Port Gigabit 10/100/1000 Mbps, 4 PoE+ Ports 802.3af/at, 40W Budget, Extend Mode 250m, Metal Casing, Black
TP-Link TL-SG1005LP Unmanaged PoE+ Switch, 5 Port Gigabit 10/100/1000 Mbps, 4 PoE+ Ports 802.3af/at, 40W Budget, Extend Mode 250m, Metal Casing, Black
TP-Link TL-SG1005LP Unmanaged PoE+ Switch, 5 Port Gigabit 10/100/1000 Mbps, 4 PoE+ Ports 802.3af/at, 40W Budget, Extend Mode 250m, Metal Casing, Black

TP-Link TL-SG1005LP Unmanaged PoE+ Switch, 5 Port Gigabit 10/100/1000 Mbps, 4 PoE+ Ports 802.3af/at, 40W Budget, Extend Mode 250m, Metal Casing, Black

Another person is viewing this product
TP-Link
View all products of this brand
TP-Link
Product not available
View similar products by:

Description

The TP-Link TL-SG1005LP is an unmanaged PoE+ switch designed to simplify the connection of network devices that require both data and power through a single cable. It features five 10/100/1000 Mbps RJ45 ports, four of which are IEEE 802.3af/at compliant to provide electricity to compatible hardware like IP cameras or wireless access points. With a total PoE budget of 40 W and up to 30 W available per port, you can reliably power several devices without needing separate electrical outlets at each installation point. Housed in a compact black metal casing measuring 99.8 × 98 × 25 mm, this switch is built for durability and operates silently, making it suitable for placement in quiet office environments or home setups. It supports traffic prioritization via 802.1p/DSCP to ensure that time-sensitive data moves smoothly across the network. For those needing to cover larger distances, the Extend Mode allows both power and data transmission up to 250 meters, while the PoE Auto Recovery feature automatically reboots devices that stop responding. Setting up the device is a straightforward plug-and-play process, requiring no complex configuration. LED indicators for power, link activity, and maximum PoE capacity provide immediate visual feedback on the system's status. This makes it a practical choice for small business owners or home users who want to expand their network infrastructure with minimal effort and high reliability.

Features

Port Configuration

Port Speed
10/100/1000 Mbps (Gigabit)
Total Number of Ports
5
Console Port
None

Power over Ethernet (PoE)

PoE Support
PoE+ (802.3at)
Number of PoE Ports
4
PoE Budget
40 W

General Specifications

Switch Type
Unmanaged
Form Factor
Desktop

Performance & Features

Cooling
Fanless (Passive)
MAC Address Table
2K

Physical Characteristics

Dimensions
100 x 98 x 25 mm
Case Material
Metal
