Gledopto Elite 2D-EXMU GL-C-616WL WLED Controller ESP32 WiFi Ethernet LAN DC 5-24V 15A for WS2812B WS2815 SK6812 LED Strips with AudioReactive Mic

Gledopto Elite 2D-EXMU GL-C-616WL WLED Controller ESP32 WiFi Ethernet LAN DC 5-24V 15A for WS2812B WS2815 SK6812 LED Strips with AudioReactive Mic
Gledopto Elite 2D-EXMU GL-C-616WL WLED Controller ESP32 WiFi Ethernet LAN DC 5-24V 15A for WS2812B WS2815 SK6812 LED Strips with AudioReactive Mic
Gledopto Elite 2D-EXMU GL-C-616WL WLED Controller ESP32 WiFi Ethernet LAN DC 5-24V 15A for WS2812B WS2815 SK6812 LED Strips with AudioReactive Mic
Gledopto Elite 2D-EXMU GL-C-616WL WLED Controller ESP32 WiFi Ethernet LAN DC 5-24V 15A for WS2812B WS2815 SK6812 LED Strips with AudioReactive Mic
Gledopto Elite 2D-EXMU GL-C-616WL WLED Controller ESP32 WiFi Ethernet LAN DC 5-24V 15A for WS2812B WS2815 SK6812 LED Strips with AudioReactive Mic
Gledopto Elite 2D-EXMU GL-C-616WL WLED Controller ESP32 WiFi Ethernet LAN DC 5-24V 15A for WS2812B WS2815 SK6812 LED Strips with AudioReactive Mic

Gledopto Elite 2D-EXMU GL-C-616WL WLED Controller ESP32 WiFi Ethernet LAN DC 5-24V 15A for WS2812B WS2815 SK6812 LED Strips with AudioReactive Mic

Gledopto
View all products of this brand
Gledopto
599 MDL
Sold by Doorify5.0(2) and delivered by IVO
In Stock
Delivery to or. Chișinău
Pickup point delivery
Tuesday, 24.11.2026
18 MDL
  • 14 Days Return
  • 100% Secure Payments
  • Invoice Included

Description

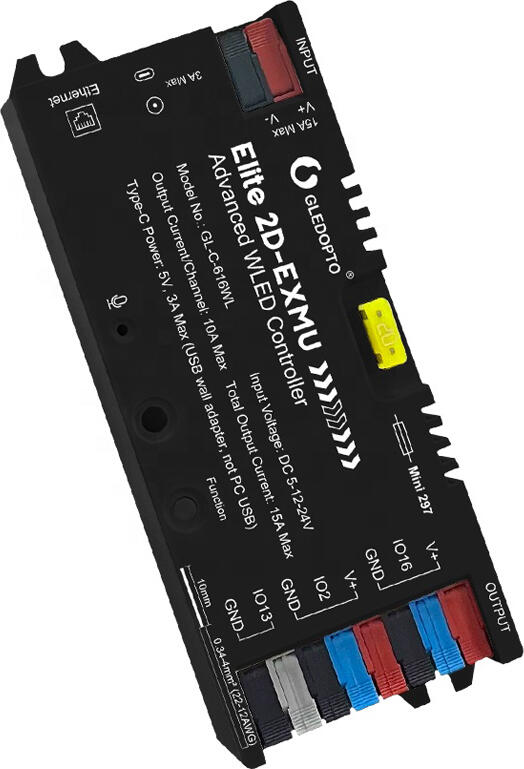

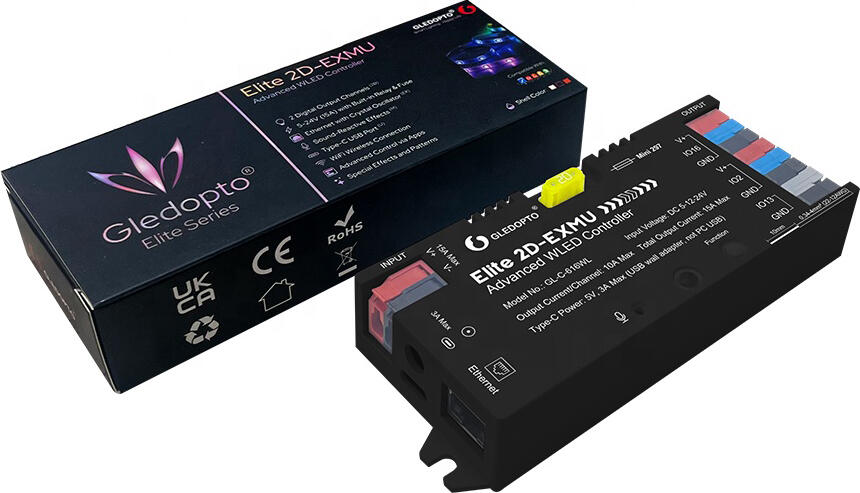

The Gledopto GL-C-616WL is a versatile LED controller from the Elite 2D-EXMU series, designed to manage complex lighting setups using the WLED firmware on an ESP32 platform. It supports a wide range of digital LED chips, including WS2812B, WS2815, SK6812, UCS2903B, and SM16703, and can handle up to 800 ICs. You can power the device with a DC input ranging from 5V to 24V, with a total maximum output current of 15A and up to 10A per channel, allowing for the parallel connection of two digital LED strips. For configuration and power, it features a Type-C port that accepts 5V/3A from a wall adapter, alongside a dedicated Ethernet port for a stable LAN connection and UART capabilities. Encased in a compact black PC housing measuring 129 x 50 x 23 mm, the controller weighs only 87.2 g and is rated IP20 for indoor use. It includes an integrated relay and fuse for added safety, as well as a built-in microphone for AudioReactive functions that let your lights sync with sound. DIY enthusiasts can utilize the GPIO16, GPIO2, and IO13 interfaces for custom expansions. This controller is ideal for users who want precise control over their ambient lighting via the WLED native app on iOS or Android, operating reliably in temperatures between -20 and +45 °C.

Features

General

Color
Black
Dimensions
129 x 50 x 23 mm
Material
Polycarbonate (PC)
Weight
87.2 g

Connectivity & Compatibility

Wireless Protocol
Wi-Fi
Interface
USB-C, RJ45
Compatible Ecosystems
WLED

Technical Specifications

Protection Rating
IP20

Power & Battery

Power Source
Mains Power
Voltage
DC 5 V, 12 V, 24 V
