ESB 5.028 Series 5000 High-Frequency Dome Tweeters, Carbon Fiber Reinforced Polymer, 28mm Aluminum Voice Coil, 110W 4 Ohm, Set of 2

ESB 5.028 Series 5000 High-Frequency Dome Tweeters, Carbon Fiber Reinforced Polymer, 28mm Aluminum Voice Coil, 110W 4 Ohm, Set of 2
ESB 5.028 Series 5000 High-Frequency Dome Tweeters, Carbon Fiber Reinforced Polymer, 28mm Aluminum Voice Coil, 110W 4 Ohm, Set of 2
ESB 5.028 Series 5000 High-Frequency Dome Tweeters, Carbon Fiber Reinforced Polymer, 28mm Aluminum Voice Coil, 110W 4 Ohm, Set of 2
ESB 5.028 Series 5000 High-Frequency Dome Tweeters, Carbon Fiber Reinforced Polymer, 28mm Aluminum Voice Coil, 110W 4 Ohm, Set of 2

ESB 5.028 Series 5000 High-Frequency Dome Tweeters, Carbon Fiber Reinforced Polymer, 28mm Aluminum Voice Coil, 110W 4 Ohm, Set of 2

Delivery to or. Chișinău
Pickup point delivery
Wednesday, 21.10.2026 (1 working days)
30 MDL
New
Another person is viewing this product
ES
View all products of this brand
ESB
4000.00 MDL
Sold by SRL Autohifi and delivered by IVO
In Stock

Description

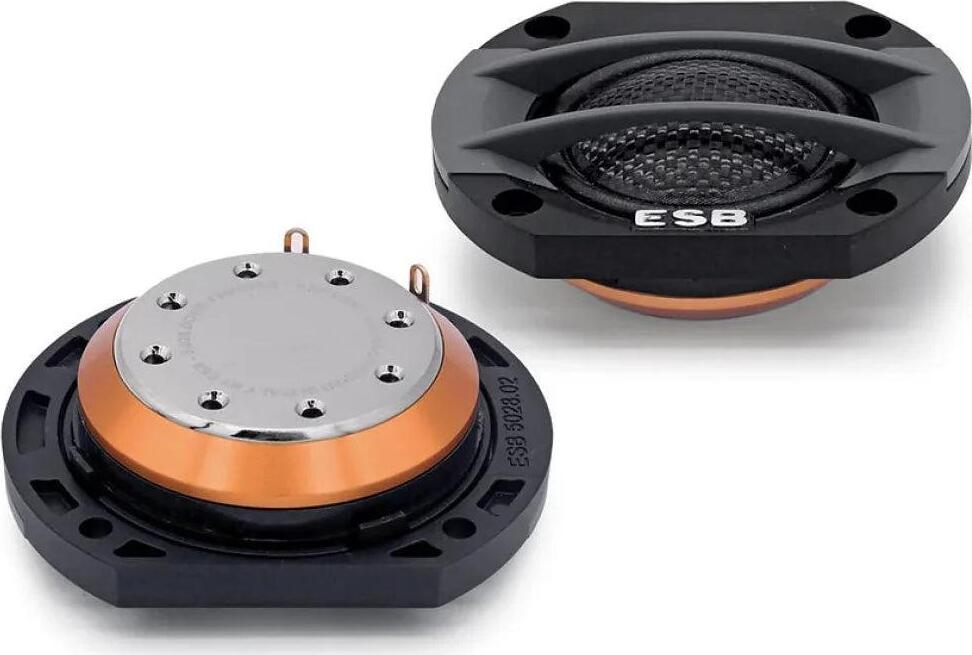

The ESB 5.028 high-frequency dome tweeters from the 5000 series come as a pair designed to bring clarity and precision to your audio system. These components feature a 28 mm dome crafted from a carbon fiber reinforced polymer matrix composite, paired with a matching 28 mm aluminum voice coil to ensure stability and accuracy. A vented neodymium motor magnet, optimized via FEA, provides the necessary drive while reducing magnetic loss even when temperatures rise during intense use. With a nominal power handling of 110 Watt and a frequency response ranging from 900 Hz to 25 KHz, these tweeters deliver a sensitivity of 94 dB. To maintain sound quality, they incorporate dB Cloth® damping material under the dome and utilize axial and radial ventilation to lower distortion. The motor parts are precision-made using a CNC process, ensuring tight tolerances for consistent performance. Installation is flexible thanks to the removable faceplate and included options for either flush mounting with chrome screws or surface mounting using the supplied cup. This versatility makes them suitable for enthusiasts who want a professional-grade high-frequency extension that can be integrated into various vehicle or home audio layouts without compromising on acoustic control.

Features

General Characteristics

Shape
Round
Speaker Type
Tweeter
Number of Ways
1-way

Technical Specifications

Nominal Power (RMS)
110 W
Sensitivity
94 dB
Impedance
4 Ohm
Maximum Power
220 W
Frequency Response
900 Hz - 25000 Hz

Materials & Construction

Magnet Type
Neodymium
Protective Grille Included
No
Tweeter Material
Carbon Fiber

Dimensions & Installation

Speaker Size
2.8 cm (1.1")
