ASRock Z890 PRO-A ATX Motherboard LGA1851 Intel Z890 Chipset for Intel Core Ultra Series 2, DDR5 9066+ MHz OC, PCIe 5.0, Thunderbolt 4, 4x M.2












ASRock Z890 PRO-A ATX Motherboard LGA1851 Intel Z890 Chipset for Intel Core Ultra Series 2, DDR5 9066+ MHz OC, PCIe 5.0, Thunderbolt 4, 4x M.2
Description

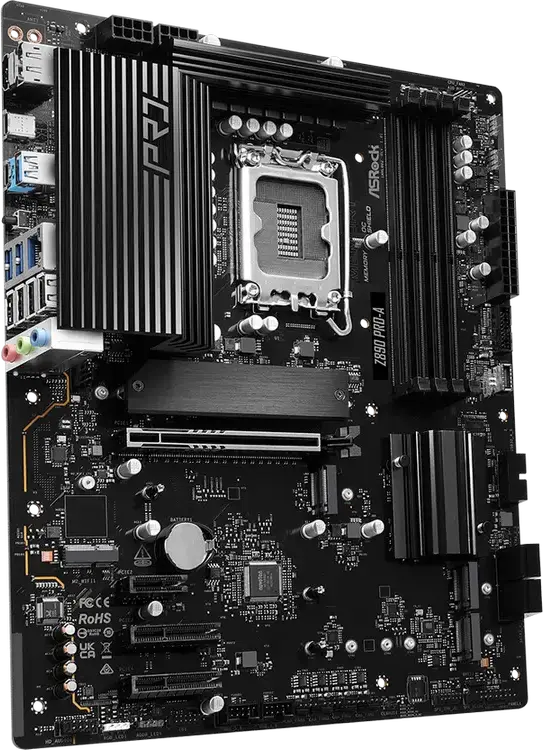

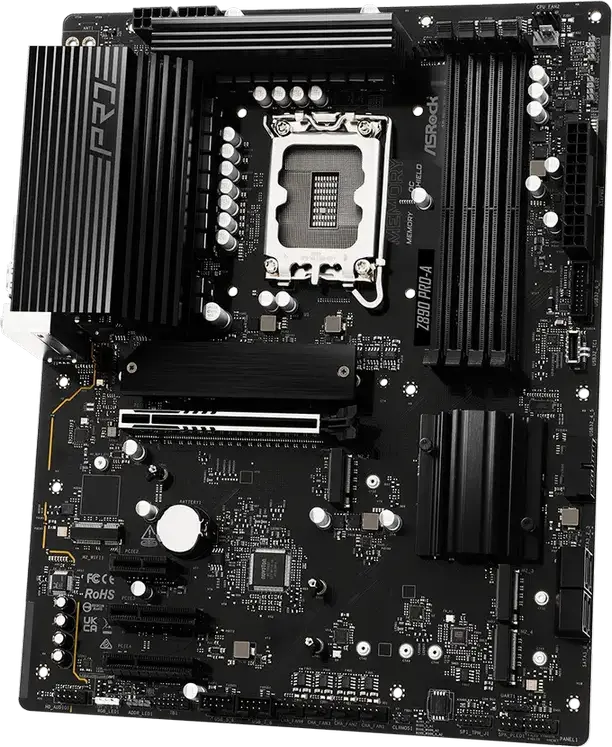

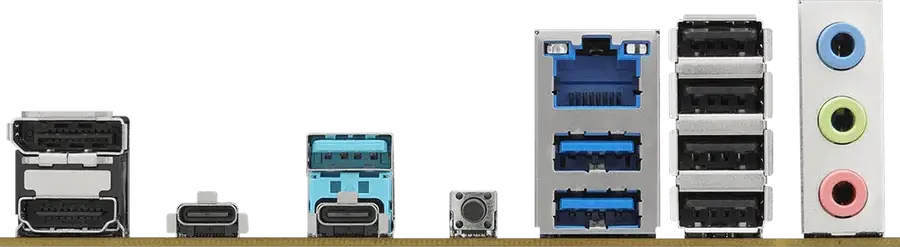

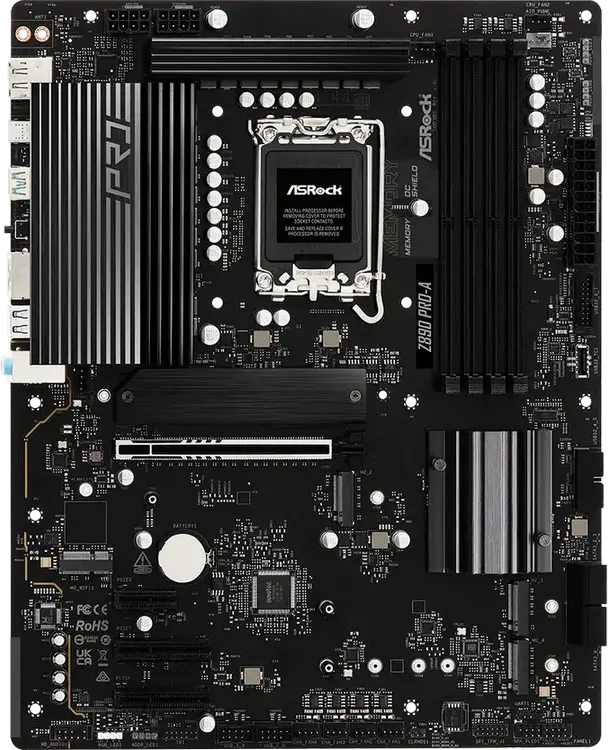

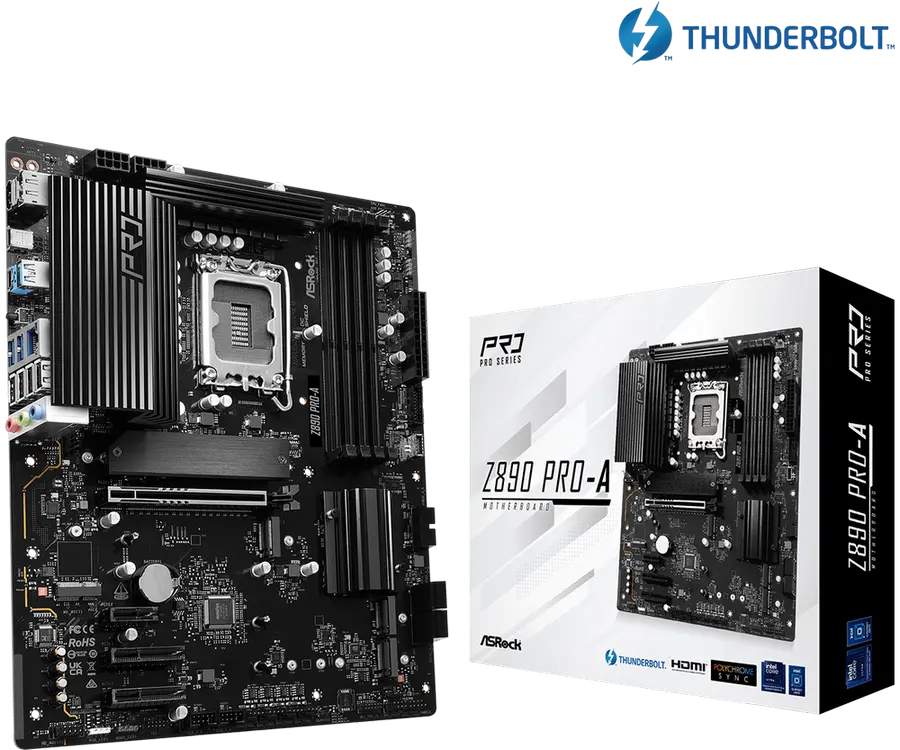

The ASRock Z890 PRO-A is an ATX motherboard designed for Intel Core Ultra Series 2 processors using the LGA1851 socket. To ensure stability under heavy workloads, it features a 16+1+1+1+1 power phase design with Dr.MOS and a 2oz copper PCB, which helps manage heat and power delivery more efficiently. You can install up to 256GB of DDR5 memory across four slots, with speeds reaching 9066+ MHz through overclocking and Intel XMP support, while a dedicated Memory OC Shield helps maintain signal integrity. For high-speed storage and graphics, the board includes a reinforced PCIe 5.0 x16 slot and four M.2 slots, including a Blazing M.2 port that supports PCIe Gen5 x4 speeds up to 128 Gb/s. Connectivity is handled by a Thunderbolt 4 / USB4 Type-C port offering 40Gbps transfers, alongside several USB 3.2 and 2.0 ports, HDMI 2.1, and DisplayPort 1.4 for integrated graphics. Networking is provided by a Realtek 2.5 Gigabit Ethernet controller, and the system is rounded out with Realtek ALC897 7.1 channel HD audio. This setup is well-suited for users building a modern workstation or gaming PC who need a balance of fast data transfer and reliable power for the latest Intel hardware.
