ASRock H810M-H Micro-ATX Motherboard LGA1851 Intel H810 DDR5 6400MHz 128GB Dual Channel PCIe 4.0 Hyper M.2 NVMe HDMI 2.1 Gigabit LAN










ASRock H810M-H Micro-ATX Motherboard LGA1851 Intel H810 DDR5 6400MHz 128GB Dual Channel PCIe 4.0 Hyper M.2 NVMe HDMI 2.1 Gigabit LAN
Description

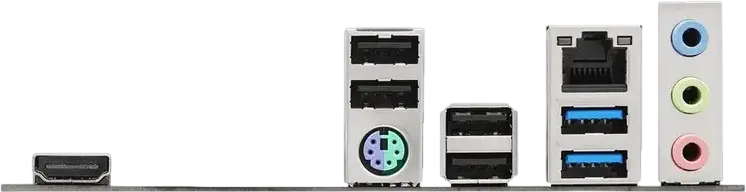

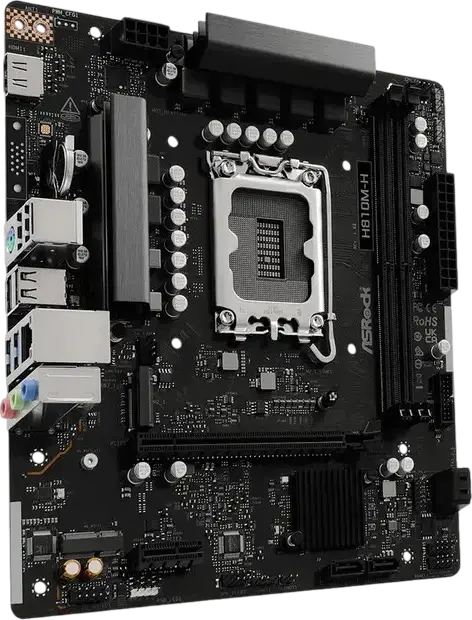

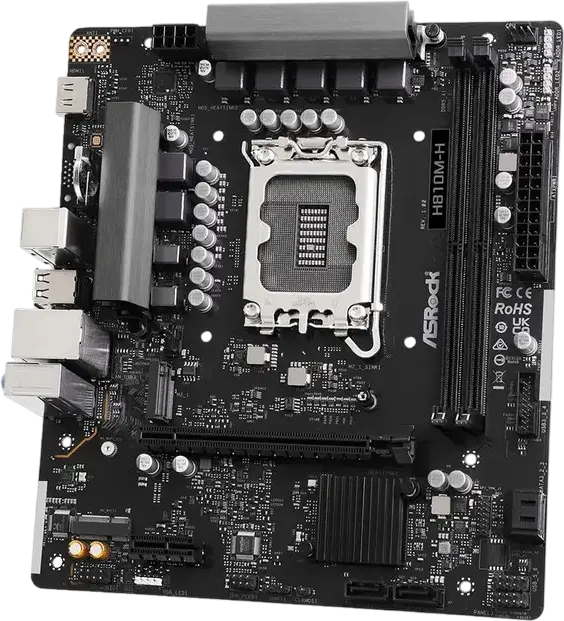

The ASRock H810M-H is a Micro-ATX motherboard designed for Intel Core Ultra Series 2 processors using the LGA1851 socket. It features a 6+1+1+1+1 power phase design and an aluminum heatsink to keep the system stable during operation. With two DDR5 DIMM slots, you can install up to 128 GB of memory running at frequencies up to 6400 MHz in a dual-channel architecture, providing the bandwidth needed for modern multitasking. For storage and expansion, the board includes a Hyper M.2 slot supporting PCIe Gen4 x4 for fast NVMe drives, alongside four SATA3 6Gb/s ports. You can add a graphics card via the PCIe 4.0 x16 slot or other peripherals through the PCIe 4.0 x1 slot, while a dedicated M.2 Key E slot allows for the addition of a WiFi module. Connectivity is handled by a Realtek Gigabit LAN controller and a variety of rear ports, including HDMI 2.1 and a mix of USB 3.2 Gen1 and USB 2.0 Type-A ports. Visual customization is possible through Polychrome RGB Sync and SignalRGB compatibility, supported by two addressable RGB and one standard RGB LED header. The integrated Realtek ALC897 codec provides 7.1 channel HD audio for your speakers or headset. Measuring 22 x 19.3 cm, this board fits easily into smaller chassis, making it a practical choice for building a compact and efficient workstation or home PC.
