ASRock B650M-H/M.2+ Micro-ATX Motherboard, AMD AM5 Socket, B650 Chipset, DDR5 6400MHz, PCIe 5.0 M.2, Support Ryzen 9000/8000/7000, HDMI 2.1, DisplayPort 1.4












ASRock B650M-H/M.2+ Micro-ATX Motherboard, AMD AM5 Socket, B650 Chipset, DDR5 6400MHz, PCIe 5.0 M.2, Support Ryzen 9000/8000/7000, HDMI 2.1, DisplayPort 1.4
Description

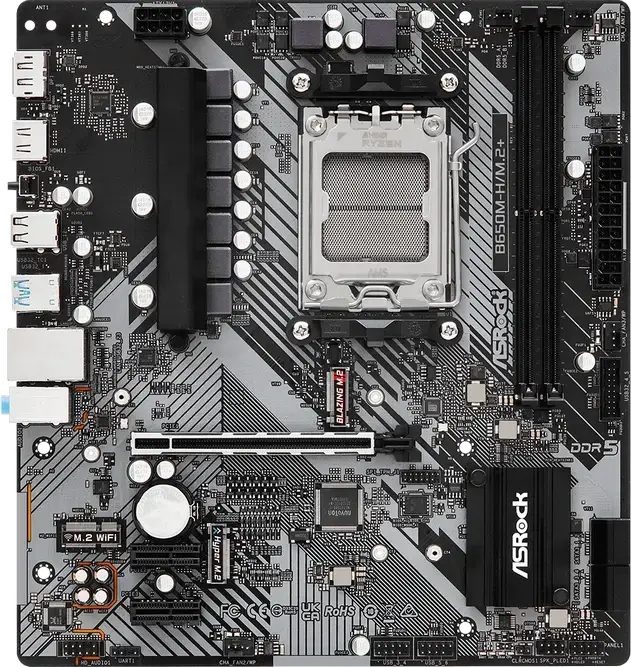

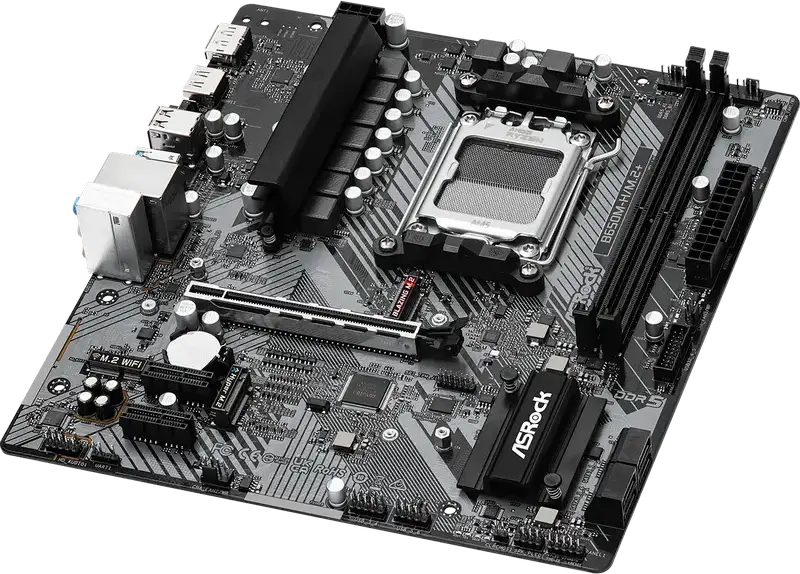

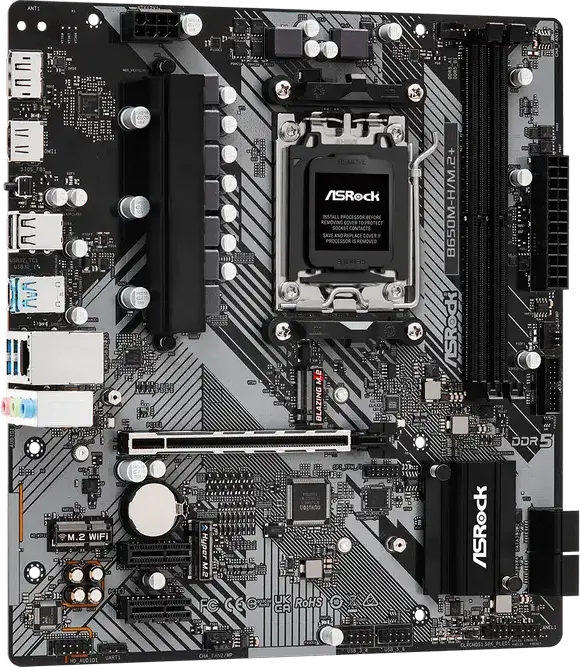

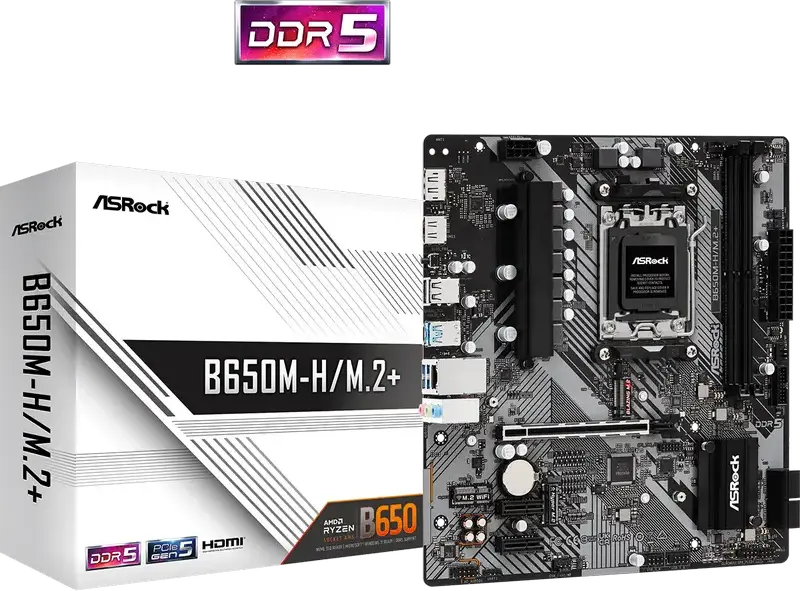

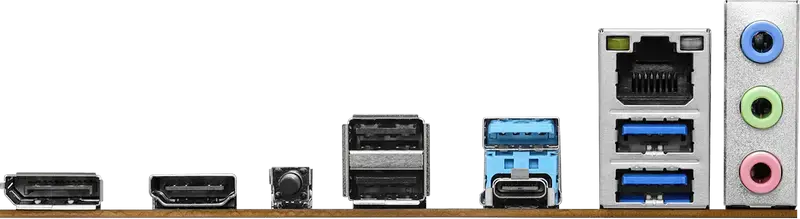

The ASRock B650M-H/M.2+ is a Micro-ATX motherboard designed for the AM5 socket, making it a reliable foundation for builds using AMD Ryzen 9000, 8000, and 7000 series processors. To keep power delivery stable, it features a 6+1+1 power phase with Dr.MOS, which helps maintain consistent performance during your daily tasks. You can install up to 96GB of DDR5 memory across two slots, with speeds reaching 6400 MHz through overclocking, ensuring your system handles memory-intensive applications smoothly. Storage and expansion options are focused on speed, featuring a Blazing M.2 slot with PCIe Gen5 x4 for the fastest NVMe drives and a second Hyper M.2 slot with PCIe Gen4 x4. For graphics and peripherals, the board provides a PCIe 4.0 x16 slot and two PCIe 4.0 x1 slots. Connectivity is handled via a Realtek Gigabit LAN port and a variety of rear USB options, including a USB 3.2 Gen1 Type-C port for modern devices. If you use integrated graphics, you can connect your monitors through the HDMI 2.1 or DisplayPort 1.4 outputs. The inclusion of a dedicated M.2 Key E slot allows you to easily add a WiFi module, while the BIOS Flashback feature simplifies firmware updates.
