ASRock A520M PRO4 Micro-ATX Motherboard, AMD AM4 Socket, A520 Chipset, DDR4 4733MHz (OC), 128GB Max RAM, Dual M.2 PCIe Gen3, HDMI 2.1, DisplayPort 1.4










ASRock A520M PRO4 Micro-ATX Motherboard, AMD AM4 Socket, A520 Chipset, DDR4 4733MHz (OC), 128GB Max RAM, Dual M.2 PCIe Gen3, HDMI 2.1, DisplayPort 1.4
Description

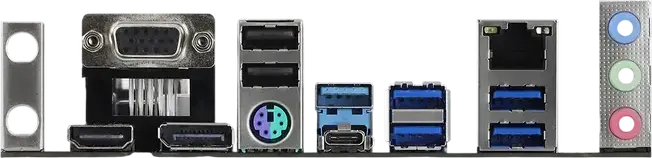

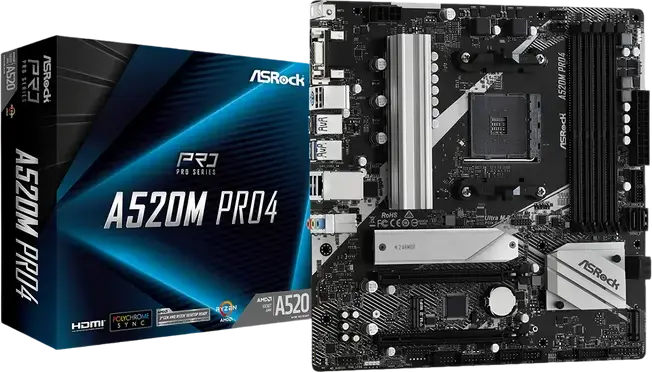

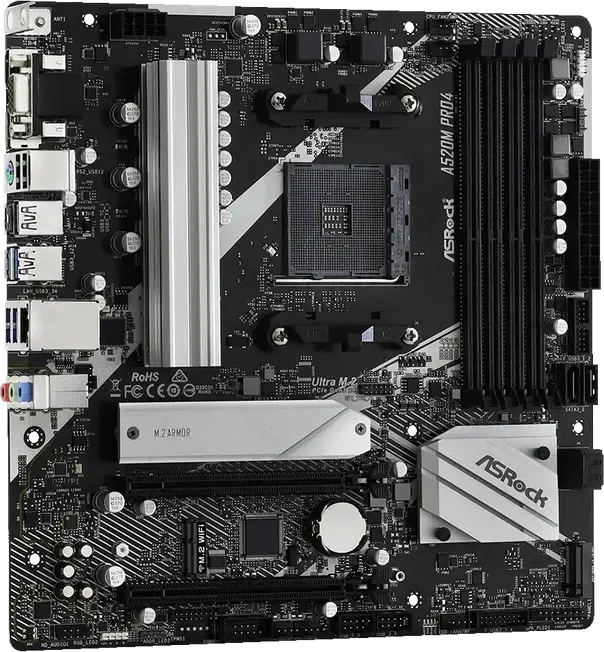

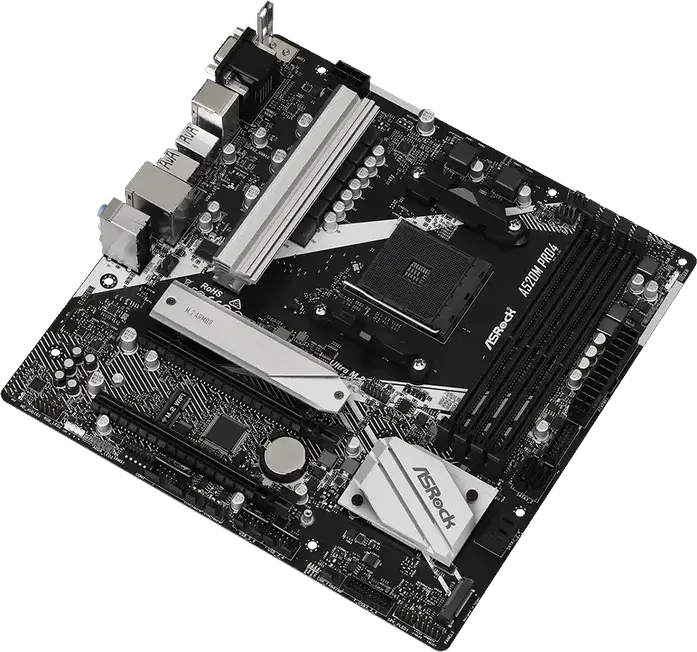

The ASRock A520M PRO4 is a Micro-ATX motherboard designed for AMD Ryzen 3000, 4000 G-Series, and 5000 series processors. It utilizes an 8 power phase design with Digi Power and 50A power chokes to ensure stable energy delivery to your CPU. For memory, it features four UDIMM slots supporting up to 128 GB of DDR4 SDRAM, with speeds reaching 3200 MHz and potential overclocking up to 4733 MHz. Storage options include four SATA 6Gb/s ports and two M.2 slots, one of which is an Ultra M.2 PCIe Gen3 x4 slot equipped with an M.2 Armor heatsink to keep your drive cool during heavy use. You can connect your peripherals via five USB 3.2 Gen1 Type-A ports and one Type-C port on the rear panel, while the board provides versatile display options through HDMI 2.1, DisplayPort 1.4, and a VGA output. Audio is handled by a Realtek codec supporting 7.1 channel HD sound with Nahimic Audio, and connectivity is rounded out by Realtek Gigabit LAN. To personalize your build, the board includes both addressable and standard RGB LED strip headers.
