Gigabyte B760 Gaming X WIFI6E GEN5 Motherboard, LGA1700, Intel B760, DDR5, PCIe 5.0, Wi-Fi 6E, Bluetooth 5.3, 2.5GbE, ATX, for Intel 12th, 13th, 14th Gen

Gigabyte B760 Gaming X WIFI6E GEN5 Motherboard, LGA1700, Intel B760, DDR5, PCIe 5.0, Wi-Fi 6E, Bluetooth 5.3, 2.5GbE, ATX, for Intel 12th, 13th, 14th Gen
Gigabyte B760 Gaming X WIFI6E GEN5 Motherboard, LGA1700, Intel B760, DDR5, PCIe 5.0, Wi-Fi 6E, Bluetooth 5.3, 2.5GbE, ATX, for Intel 12th, 13th, 14th Gen
Gigabyte B760 Gaming X WIFI6E GEN5 Motherboard, LGA1700, Intel B760, DDR5, PCIe 5.0, Wi-Fi 6E, Bluetooth 5.3, 2.5GbE, ATX, for Intel 12th, 13th, 14th Gen
Gigabyte B760 Gaming X WIFI6E GEN5 Motherboard, LGA1700, Intel B760, DDR5, PCIe 5.0, Wi-Fi 6E, Bluetooth 5.3, 2.5GbE, ATX, for Intel 12th, 13th, 14th Gen
Gigabyte B760 Gaming X WIFI6E GEN5 Motherboard, LGA1700, Intel B760, DDR5, PCIe 5.0, Wi-Fi 6E, Bluetooth 5.3, 2.5GbE, ATX, for Intel 12th, 13th, 14th Gen
Gigabyte B760 Gaming X WIFI6E GEN5 Motherboard, LGA1700, Intel B760, DDR5, PCIe 5.0, Wi-Fi 6E, Bluetooth 5.3, 2.5GbE, ATX, for Intel 12th, 13th, 14th Gen
Gigabyte B760 Gaming X WIFI6E GEN5 Motherboard, LGA1700, Intel B760, DDR5, PCIe 5.0, Wi-Fi 6E, Bluetooth 5.3, 2.5GbE, ATX, for Intel 12th, 13th, 14th Gen
Gigabyte B760 Gaming X WIFI6E GEN5 Motherboard, LGA1700, Intel B760, DDR5, PCIe 5.0, Wi-Fi 6E, Bluetooth 5.3, 2.5GbE, ATX, for Intel 12th, 13th, 14th Gen

Gigabyte B760 Gaming X WIFI6E GEN5 Motherboard, LGA1700, Intel B760, DDR5, PCIe 5.0, Wi-Fi 6E, Bluetooth 5.3, 2.5GbE, ATX, for Intel 12th, 13th, 14th Gen

Another person is viewing this product
Gigabyte
View all products of this brand
Gigabyte
Product not available
View similar products by:

Description

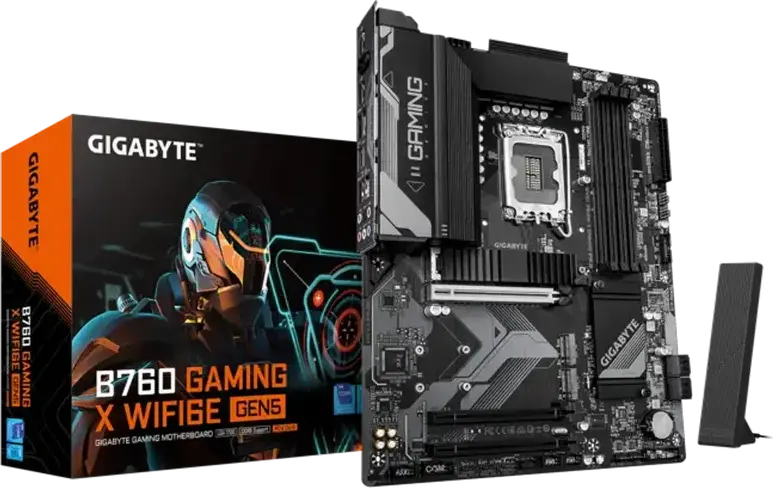

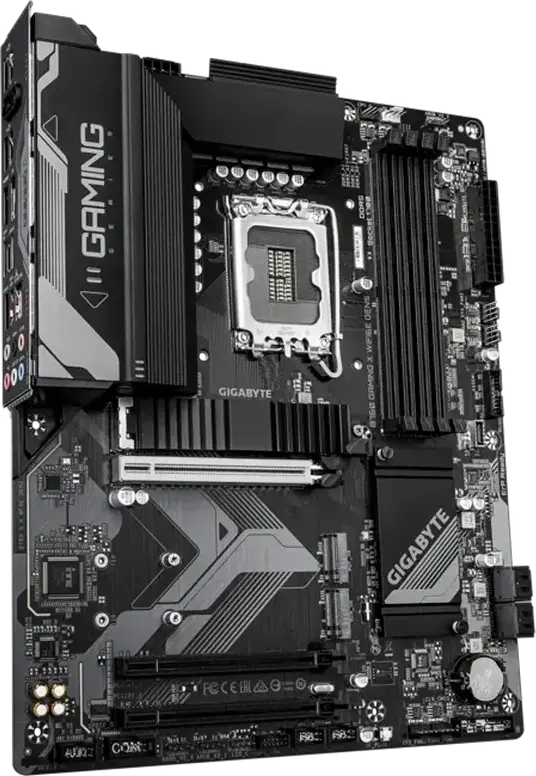

The Gigabyte B760 Gaming X WIFI6E GEN5 is an ATX motherboard designed for Intel Core 12th, 13th, and 14th Generation processors using the LGA1700 socket. It focuses on high-speed connectivity and future-proofing, featuring a PCIe Gen 5.0 x16 slot that allows you to take full advantage of the latest graphics cards. For memory, it utilizes DDR5 SDRAM across four slots, supporting a massive capacity of up to 256GB and reaching speeds of 7600 MHz through overclocking, which ensures smooth multitasking and fast application loads. Storage and networking are handled with efficiency, providing three PCIe Gen 4.0 M.2 slots for fast NVMe drives and four SATA 6Gb/s connectors for larger hard disks. You can stay connected without cables thanks to integrated Wi-Fi 6E and Bluetooth 5.3, while a 2.5 Gigabit Realtek Ethernet port provides a stable wired connection for online gaming. The board also includes a variety of ports, such as HDMI 2.1 and DisplayPort 1.2 for video output, and a wide array of USB 3.2 ports, including a Type-C connector, to handle all your modern peripherals. With 7.1 surround sound audio and multiple RGB headers, this board is well-suited for gamers building a customized, high-performance PC.

Features

Audio and Internal Headers

Audio Channels
7.1
RGB Headers
1 x RGB LED, 3 x Addressable LED

Expansion and Storage

SATA III Connectors
4
M.2 Slots
3
PCI Express Slots
PCIe 5.0 x16
RAID Support
RAID 0, RAID 1, RAID 10, RAID 5

General Specifications

Form Factor
ATX
Socket
LGA1700
Chipset
Intel B760

Memory Support

Memory Type
DDR5
Memory Slots
4
Maximum Memory Capacity
256 GB

Connectivity and Ports

Network (LAN)
2.5 Gbps

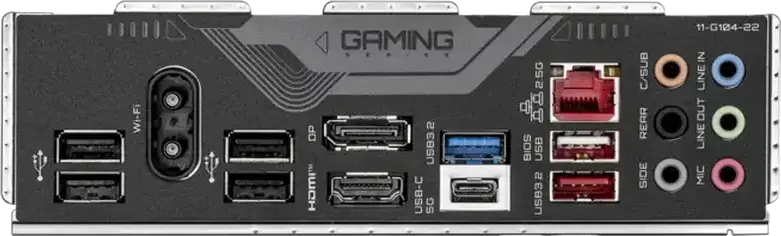

Video Outputs
HDMI 2.1, DisplayPort 1.2
Back Panel USB Ports
5 x USB 2.0, 1 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Type-C
Wireless Connectivity
Wi-Fi 6E, Bluetooth 5.3
